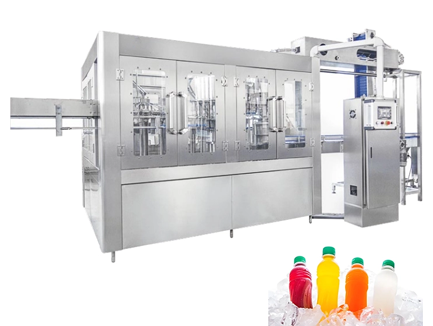

Filling machines are essential equipment in the packaging industry, responsible for accurately dispensing liquids or semi-liquids into containers such as bottles, cans, or jars. They play a critical role in ensuring product quality, efficiency, and hygiene in manufacturing lines. Whether it is water, juice, soft drinks, or more viscous liquids like sauces, the right filling machine guarantees consistent volume, reduces wastage, and speeds up production. In today’s competitive beverage and food sectors, filling machines help companies meet strict regulatory standards and customer expectations, making them indispensable for business success.
Main Types of Filling Machines: Volumetric, Gravimetric, Pressure, and Gravity Fillers
Filling machines come in various types, each suited for different products and production needs. Understanding these types helps manufacturers select the best equipment for their specific application.
Volumetric Fillers Volumetric filling machines measure a predetermined volume of liquid before dispensing it into containers. These machines are highly accurate and suitable for a wide range of liquid viscosities, from water-thin to moderately thick products. They often use pistons, syringes, or flowmeters to control the volume, ensuring consistent fill levels which are essential for quality control and cost efficiency.
Gravimetric (Weight-Based) Fillers Gravimetric filling machines operate by weighing the liquid dispensed into each container. This method is especially useful for products where precise weight rather than volume is critical. These fillers ensure high accuracy even when product density varies, such as in beverages containing pulp or suspended particles. Gravimetric fillers are ideal for meeting legal and regulatory requirements regarding net content.
Pressure Fillers Pressure filling machines use pressure differences to fill containers, making them ideal for carbonated and sparkling beverages where maintaining carbonation is crucial. These machines can fill at high speeds while controlling foaming and gas loss. They typically incorporate counter-pressure technology to balance the internal can or bottle pressure with the product, ensuring minimal product degradation and optimal quality.
Gravity Fillers Gravity filling machines rely on gravity to allow liquid to flow into containers. These are best suited for low-viscosity, non-carbonated liquids such as water or clear juices. Gravity fillers are simpler and generally less expensive, but their speed and precision may be limited compared to other types. They work well in small to medium production lines where gentle filling is needed to reduce foaming or splashing.
Working Principles Explained: Operational Processes and Core Technologies of Different Types of Filling Machines
Filling machines operate on varied principles depending on the type of liquid product and packaging requirements. Each machine employs specific mechanisms to ensure accurate, efficient, and hygienic filling.
Volumetric Fillers Volumetric fillers use a fixed measuring device such as a piston or a chamber to draw a predetermined amount of liquid. The process begins when the piston retracts, pulling the liquid into the measuring chamber from a supply tank. Once filled, the piston moves forward, pushing the liquid into the container. This cycle repeats for each container, guaranteeing a precise volume every time. Flowmeter-based volumetric fillers measure liquid flow electronically, providing high accuracy especially suitable for varying product viscosities.
Gravimetric Fillers Gravimetric filling machines use load cells or weighing sensors to measure the weight of the liquid as it is dispensed. The container is placed on a weighing platform, and the machine fills until the preset target weight is reached. This method compensates for density variations and ensures compliance with strict weight regulations. It is widely used in industries where product weight is more critical than volume.
Pressure Fillers Pressure filling machines function by equalizing the pressure inside the container and the filling tank, typically through counter-pressure filling. For carbonated drinks, the machine pressurizes the bottle or can to match the beverage pressure to prevent foaming and loss of carbonation. Once pressure is balanced, the liquid is allowed to flow in smoothly. This method maintains the integrity of carbonated products and allows high-speed filling.
Gravity Fillers Gravity fillers rely on the natural flow of liquid due to gravity. The liquid is held in an elevated tank or reservoir and flows down through nozzles into containers below. The filling stops once a sensor detects the liquid has reached the desired level. This simple principle is best suited for non-viscous and non-carbonated liquids that don’t require pressure regulation.
Automation Level and Control Systems: Introduction to PLC Control and Human-Machine Interface (HMI)
Modern filling machines increasingly integrate advanced automation technologies to improve precision, efficiency, and user convenience.
Programmable Logic Controllers (PLC) PLCs are industrial computers designed to control machinery operations with high reliability. In filling machines, PLCs manage tasks such as timing, synchronization of filling cycles, speed regulation, and safety interlocks. They enable flexible programming so operators can adjust parameters like fill volume, conveyor speed, and machine sequence easily. PLCs improve machine uptime by facilitating diagnostics and remote monitoring.
Human-Machine Interface (HMI) The HMI is the user-friendly graphical interface that allows operators to interact with the filling machine. Through touchscreens or panels, users can monitor machine status, modify settings, and receive alerts or error notifications. HMIs provide visual data such as filling speed, production count, and maintenance reminders, making operation more intuitive and reducing human error. Advanced HMIs also support recipe management for handling multiple product lines with quick changeovers.
Together, PLC and HMI systems enable seamless integration of filling machines into automated production lines, enhancing control accuracy and operational safety while reducing labor costs.
Key Factors Affecting Filling Quality: Flow Control, Cleanliness, and Accuracy
Achieving high-quality filling is crucial for maintaining product integrity and customer satisfaction. Several key factors influence the precision and consistency of the filling process:
Flow Control Precise control of liquid flow rate is fundamental to ensure each container is filled with the correct volume. Variations in flow can lead to overfilling or underfilling, resulting in product waste or regulatory non-compliance. Modern filling machines use sophisticated flow meters, adjustable valves, and sensors to maintain steady flow even when liquid viscosity or temperature changes.
Cleanliness and Hygiene In beverage and food industries, maintaining a sterile environment during filling is essential to prevent contamination. Filling machines must be designed for easy cleaning and sanitization, often featuring stainless steel construction and CIP (Clean-In-Place) systems. Proper sealing of filling nozzles and avoiding product exposure to open air help reduce microbial risks and extend product shelf life.
Accuracy and Precision High precision in filling volume or weight ensures product consistency and builds brand trust. Filling machines achieve this through accurate sensors, calibrated measuring devices, and real-time feedback systems. Consistency also reduces packaging material waste and improves overall production efficiency.
G-PACKER Filling Machines’ Technical Advantages: High Precision and Multi-Function Integration
G-PACKER machines stand out in the market due to their advanced technology and versatile design, offering solutions that combine multiple functions into a single unit:
High Precision Filling Utilizing state-of-the-art sensors and control algorithms, G-PACKER filling machines deliver exceptional accuracy in volume or weight-based filling. This precision minimizes product loss and meets strict industry standards, crucial for beverages like juices, carbonated drinks, and purified water.

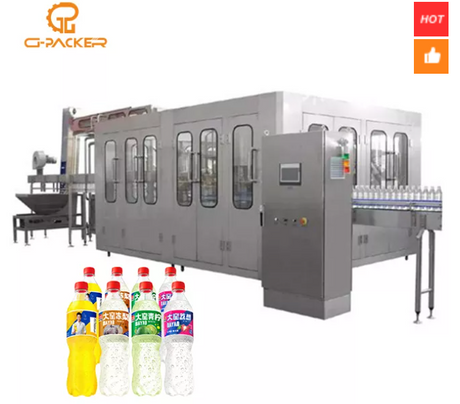

3-in-1 Integration: Rinsing, Filling, and Capping G-PACKER’s signature 3-in-1 filling machines integrate rinsing, filling, and capping processes seamlessly within one automated line. This integration reduces manual handling, improves production speed, and maintains hygienic standards throughout the packaging cycle.

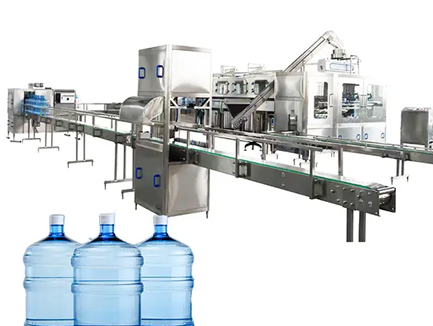

Customization and Flexibility Recognizing diverse customer needs, G-PACKER offers tailored solutions accommodating various bottle types — plastic, glass, cans, and gallons — and different product viscosities and carbonation levels. Customers can specify production speeds, bottle shapes, and label designs, enabling a turnkey approach for efficient beverage packaging.
Conclusion
Selecting the right filling machine requires a clear understanding of its working principles and the key factors affecting filling quality. By considering flow control, cleanliness, and precision, manufacturers can ensure consistent, safe, and efficient packaging operations.
G-PACKER’s advanced technology and integrated multi-function machines provide ideal solutions for a wide range of liquid packaging needs in the beverage industry. Choosing equipment aligned with your product type and production requirements will optimize line output, enhance product quality, and reduce operational costs.
Reach out to G-PACKER with your product details and production speed requirements — their expert team will help design the best filling solution for your business success.
