What is the temperature and time for tunnel pasteurization?

The beverage and liquid food industry relies heavily on thermal processing to ensure product safety and shelf stability. Among the various methods available, tunnel pasteurization stands as a cornerstone technology for large-scale production, particularly for bottled and canned products. Understanding the precise balance between temperature and time is the key to achieving microbial inactivation while preserving the sensory qualities of the product.

The standard temperature for tunnel pasteurization typically ranges from 60°C to 72°C (140°F to 161.6°F), with a dwell time ranging from 15 to 30 minutes in the pasteurizing zone, depending on the product’s pH, CO2 levels, and initial microbial load. The process is quantified using Pasteurization Units (PUs), where 1 PU is defined as 1 minute of exposure at 60°C.

This article provides an in-depth exploration of the thermal dynamics within tunnel pasteurizers, the calculation of Pasteurization Units, and the critical factors that influence the selection of time and temperature parameters. By the end of this guide, production managers and engineers will have a clearer understanding of how to optimize their tunnel pasteurization lines for maximum efficiency and product quality.

Table of Contents

Core Principles of Tunnel Pasteurization

Tunnel pasteurization is a thermal preservation process where packaged products are moved through a long tunnel and sprayed with water at varying temperatures to achieve microbial stability.

This method is distinct because it treats the product after it has been sealed in its final container, whether that be a glass bottle, aluminum can, or PET bottle. The primary objective is to eliminate spoilage organisms such as yeast, mold, and lactic acid bacteria. The process relies on the principle of heat transfer, where the external spray water heats the container, which in turn heats the liquid inside.

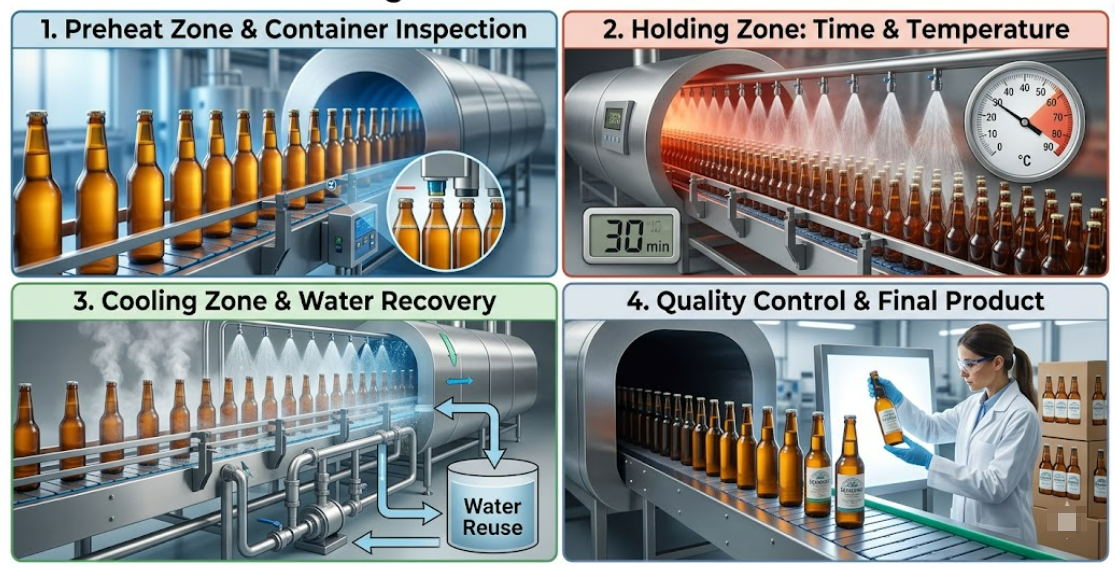

The tunnel is divided into several distinct zones: pre-heating, pasteurizing, and cooling. This gradual transition is essential to prevent thermal shock, which could lead to container breakage, especially in glass bottles. By controlling the water temperature in each zone, manufacturers can precisely manage the "cold spot" temperature inside the container, ensuring that every unit reaches the required biological lethality.

From a B2B perspective, the reliability of this method makes it a favorite for high-volume breweries and juice manufacturers. Unlike methods that treat the liquid before filling, tunnel pasteurization eliminates the risk of recontamination during the capping or seaming process. This provides an additional layer of security for products destined for long-distance shipping or unrefrigerated shelf storage.

Specific Temperature and Time Parameters

For most beer and acidic beverages, the target pasteurization temperature is held between 60°C and 65°C for a duration of 15 to 20 minutes to reach the necessary Pasteurization Unit (PU) threshold.

While the 60°C to 65°C range is common, the specific parameters fluctuate based on the specific biological risks associated with the liquid. For example, carbonated soft drinks or high-acid juices may require slightly higher temperatures or longer hold times if the initial microbial count is high. In contrast, heavy stouts or craft beers with residual sugars might require a more delicate touch to avoid "cooked" off-flavors that occur at excessive heat.

The total time a container spends inside the machine—often referred to as the "cycle time"—is much longer than the pasteurization time itself. A typical cycle might last 45 to 60 minutes, accounting for the time needed to ramp the temperature up and cool it back down to roughly 25°C to 30°C. This ensures the product is safe to handle and label immediately upon exiting the tunnel.

To help visualize these requirements, the following table illustrates standard industry benchmarks:

Calculating Pasteurization Units (PU)

The Pasteurization Unit (PU) is a quantitative measure of the biological effect of heat, calculated using the formula PU = t \times 1.393^{(T - 60)}, where t is time in minutes and T is temperature in degrees Celsius.

The PU concept allows quality control managers to standardize their process even if temperatures fluctuate slightly. The base temperature of 60°C is the point at which 1 PU is earned every minute. As the temperature increases, the rate of microbial kill increases exponentially. For instance, at 67°C, the lethal effect is significantly higher than at 60°C, meaning the product requires much less time in the pasteurizing zone to achieve the same level of safety.

In a professional tunnel pasteurization setup, sensors monitor the "cold spot"—the area in the container that is slowest to heat up, usually near the bottom center. Sophisticated software tracks the temperature of this cold spot throughout the journey through the tunnel, accumulating PU values in real-time. If the water temperature drops unexpectedly, the conveyor speed can be slowed down to compensate and ensure the target PU is reached.

Understanding PU is critical for maintaining flavor integrity. "Over-pasteurizing" (accumulating too many PUs) can lead to oxidation, flavor degradation, and a shorter sensory shelf life, even if the product is microbially "safe." Therefore, the goal of a B2B beverage operation is to hit the minimum required PU for safety without exceeding it, maintaining a balance between biology and chemistry.

Factors Influencing Thermal Requirements

The required time and temperature are influenced by the container's material, its size, the product's pH level, and the carbonation volume, all of which affect heat penetration and microbial resistance.

1. Container Material and Size: Aluminum cans conduct heat much faster than glass bottles. Consequently, a product in a 330ml can may reach its target temperature several minutes faster than the same product in a 500ml thick-walled glass bottle. The "thermal lag" must be accounted for when setting tunnel speeds.

2. Product Chemistry: Microorganisms are more easily killed in high-acid environments (low pH). Therefore, a highly acidic fruit juice may require fewer PUs than a neutral-pH beverage. Similarly, higher alcohol content in beer acts as a preservative, potentially allowing for lower pasteurization temperatures.

3. Initial Microbial Load: If the upstream filtration and hygiene processes are world-class, the initial "bioburden" is low, allowing for a more conservative pasteurization schedule. If the raw ingredients or filling environment are less controlled, higher PUs are necessary to ensure total safety.

These variables mean that there is no "one size fits all" setting for a tunnel pasteurizer. Each product and packaging combination requires a validation study, often involving "travelling recorders"—probes that move through the tunnel inside a sample container—to map the exact thermal profile.

Tunnel vs Flash Pasteurization

While tunnel pasteurization treats the finished package, flash pasteurization involves heating the liquid in a heat exchanger for a short duration (e.g., 72°C for 15 seconds) before filling it into a sterile container.

Choosing between these two methods is a critical decision for any beverage business. Tunnel systems offer a higher degree of safety because they eliminate post-filling contamination risks. However, they require significantly more floor space and consume more water and energy than flash systems. Tunnel pasteurizers are also better suited for products that are difficult to fill aseptically, such as those with high pulp content or complex carbonation profiles.

For a deeper dive into which system fits your specific production needs, you can explore the detailed comparison of Tunnel Pasteurizers Vs Flash Pasteurizers: Choosing The Best Pasteurizing System For Your Process. This resource outlines the capital expenditure and operational differences that can impact long-term ROI.

In the context of temperature and time, flash pasteurization uses "High Temperature Short Time" (HTST) logic, while tunnel pasteurization uses "Lower Temperature Longer Time" (LTLT) logic. The tunnel's gradual approach is often preferred for premium beverages where the goal is to minimize the "burnt" notes sometimes associated with the intense heat of flash systems.

Maintenance and Quality Control

Consistent pasteurization requires regular calibration of temperature sensors, inspection of water spray nozzles for clogs, and routine validation using independent data loggers.

A tunnel pasteurizer is a complex piece of machinery with hundreds of spray nozzles. If a section of nozzles becomes clogged with scale or debris, the containers in that area will not receive the intended heat, resulting in "under-pasteurized" units that could spoil on the shelf. This makes a robust preventative maintenance program essential for any B2B operation.

1. Nozzle Maintenance: Regularly cleaning the spray headers ensures even water distribution across the entire width of the conveyor belt.

2. Water Treatment: Because the water is recycled, it must be treated to prevent the growth of algae and the buildup of mineral deposits, which can insulate containers and reduce heat transfer efficiency.

3. Speed Calibration: The conveyor drive system must be precisely calibrated. Since time is a primary variable in the PU equation, any deviation in belt speed will directly impact the safety of the product.

Summary of Best Practices

To ensure your tunnel pasteurization process is both safe and efficient, follow these core guidelines:

• Always validate your thermal profile using a calibrated data logger at least once per month or whenever the product recipe changes.

• Monitor the cooling zones closely; cooling the product too slowly can lead to "stack burn" and flavor loss.

• Optimize water consumption by utilizing heat recovery systems that transfer heat from the cooling zones back to the pre-heating zones.
