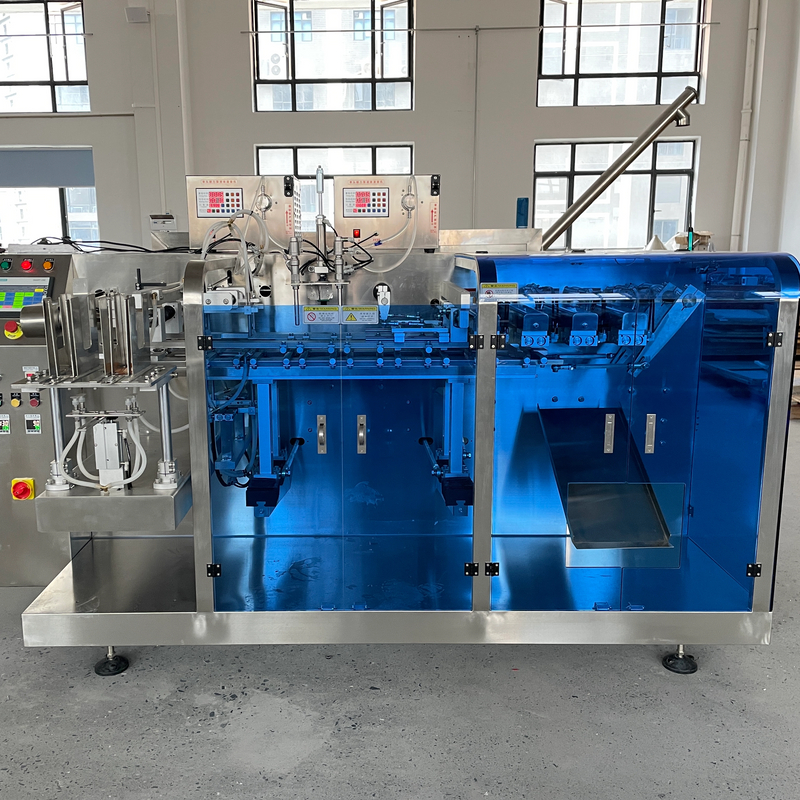

A **pouch bag packaging and sealing machine** is an automated system designed to fill and hermetically seal pre-made or form-fill-seal (FFS) pouches with products such as liquids, powders, granules, or solids. These machines are widely used in industries like food, pharmaceuticals, cosmetics, and pet care for flexible, lightweight, and shelf-stable packaging. Below is a detailed breakdown:
---
**1. Definition & Purpose**
- **Function**: Automates the process of filling and sealing **flexible pouches** (stand-up, spouted, flat, or zipper-lock) to protect products from contamination, moisture, and oxygen.
- **Applications**:
- **Food**: Snacks, coffee, sauces, baby food, frozen goods.
- **Non-Food**: Pharmaceuticals (tablets, powders), detergents, pet food, cosmetics.
---
**2. Key Components**
1. **Pouch Feeding System**:
- **Pre-Made Pouches**: Automatically loads pre-formed pouches from a magazine.
- **Form-Fill-Seal (FFS)**: Creates pouches from roll-fed film (laminated or co-extruded).
2. **Filling Station**:
- Volumetric, auger, or liquid pumps for precise dosing.
- Multi-head fillers for simultaneous filling (e.g., liquid + powder).
3. **Sealing Mechanism**:
- **Heat Sealing**: Uses heated jaws to melt and fuse pouch layers.
- **Cold Sealing**: Pressure-sensitive adhesives for heat-sensitive products.
- **Vacuum/Gas Flushing**: Removes air or injects nitrogen/CO₂ for extended shelf life.
4. **Cutting/Trimming Unit**: Separates individual pouches from roll stock (FFS systems).
5. **Control Panel**: PLC/HMI for adjusting parameters (temperature, speed, fill volume).
### **3. Types of Pouch Packaging Machines**
- **Vertical Form-Fill-Seal (VFFS)**:
- Forms pouches vertically from film rolls, fills, and seals in one motion. Ideal for powders/granules.
- **Horizontal Form-Fill-Seal
